Physics New Products 2013
-
|
SIMPLE PLASTIC MAGNIFIER |
| Code:GP-2251.1 |
• Dual magnifier high quality acrylic lens and handle with bifocal spot lens.
• Very handy and unbreakable plastic
• 3X lens 4.5cm in diameter
• 6X lens 1.7cm in diameter
• Overall length 11.5cm
|
-
 |
WOODEN SAND TIMER |
| Code:GP-4001 |
Introducing new Sand-timers available in a variety of sizes and timer lengths. Made of hand blown clear glass, filled with white sand and cushioned wool pads, fitted in a completely polished round wooden frame. Available in 15, 30 & 60 minutes.
|
-
 |
MICROSCOPE SLIDE BOX |
| Code:GP-2175 |
Indexed, compact and durable, this smooth wooden microscope slide box provides the best in microscope slide protection. Heavy walls will not warp, splinter or crack; material is unaffected by humidity and is thoroughly insect proof. Cover and bottom have numbered index for quick identification and units are stackable. Soft, green foam layer in bottom part. Made of beach wood.
Available in 50 and 100 Slide Boxes.
|
-
 |

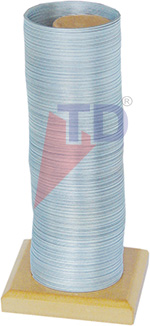

SLINKY SPRING WITH STAND |
| Code: GP-560.2 |
Extra long Slinky spring (stands 20cm high when compressed) allows student more time to observe wave behavior. The concern over tangling during use or storage is solved with the included stand.
|
-
 |
CELL HOLDER |
| Code: GP-907 |
An excellent addition to any electricity lab, this newly designed cell holder fixed on a beautiful blue plastic moulded base fits four D-cell batteries connected in series.
• Base is clearly engraved with DC 1.5, 3, 4.5 & 6 V. • Works as low voltage power supply
|
-
 |
ELECTRONIC TICKER TIMER |
| Code: GP - 197 |
Latest design using modern materials. A vibrating striker prints dots onto tape using a carbon disc. Housed in a robust hard-wearing shock-absorbing plastic case. Has unique way of adjusting the position of the carbon disc which allows either standard or wider tape to be used. This version has two timing settings 25 and 40 dots per second enabling more complex work to be undertaken. Operates on 6 – 9 volts DC
|
-
 |

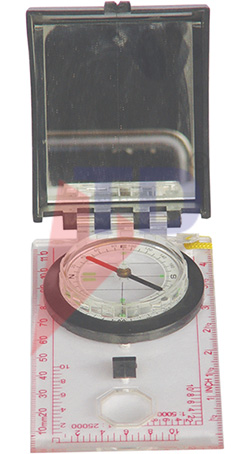

MAGNETIC COMPASS |
| Code: GP - 4101 |
A very comprehensive and advanced magnetic compass comprising:
• Transparent base surface that supports the compass card and has markings and scales.
• Baseline marked on the base plate that is placed on top of a topographic map; it shows the direction of the place toward which the person wishes to travel.
• Graduated Scale used to judge the distance to be travelled, in conjunction with the map's scale.
• Sighting Line running parallel to the baselines; it is used to indicate the direction of travel. • Sight Device used to select a landmark in the direction a person chooses to walk. • Graduated Compass card indicate the angle in degrees, marked with the four cardinal points and Meridian lines to match meridian line on a map can be used to determine the direction of travel in degrees. • Cover that contains the mirror and protects the compass card when it is folded over the base plate.
• Sighting Mirror that reflects the image of the compass card and confirms the direction of travel.
|
-
 |

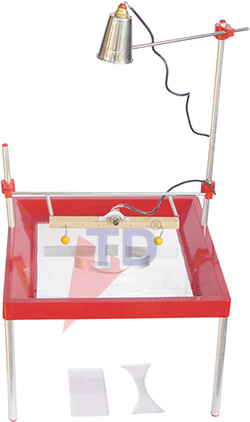

RIPPLE TANK APPARATUS |
| Code: GP-567.1 |
Always a popular lab/demo sequence-waves in a ripple tank! Proven method for studying numerous wave/optics principles. This sturdy ripple tank is made of molded plastic and features a viewing area larger than other ripple tanks. Its bottom is made of high-quality plate perspex to assure projection of distortion-free wave images. Special angled foam beaches around the perimeter of the tank greatly reduce unwanted reflections. The rippler unit consists of a 3-volt motor mounted on a rippler bar that can generate both straight and circular waves. The motor is equipped with a movable counterweight for varying wave amplitude. The complete apparatus includes four foam beaches, one light source support rod, one rippler bar with hangers, one rippler motor, one parabolic reflector, one glass plate, three barriers, four detachable legs.
|
