Microscopes
-
 |
DISSECTING MICROSCOPE |
| Code:PA |
A unique base is designed for greater stability and beautiful look. Equipped with joint revolving arm for maving the magnifying lense over the stage allowing the whole stage area to be scanned. Focussable by rack and pinion. Detachable rests on either side of the stage. Supplied with high eye point 10x & 20x eye pieces in a wooden box.
|
 |

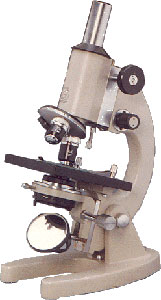

STUDENT MICROSCOPE |
| Code:PA- |
Straight monocular body with triple revolving nose piece having safety stopper for slides. Coarse and fine motion with separate knobs.
OPTICAL COMBINATION
Ach. Objectives : 10x and 45x (Spring Loaded)
Hyg. Eye Pieces : H 10x and H 15x
Illumination : Substage N.A. 1.25 two lens Abbe condenser with iris diaphragm focussable with rack and pinion.
OTHER MODELS AVAILABLE
Model PA- : Illumination provided with disc diaphragm.
Model PA- : Illumination controlled with iris diaphragm.
Model PA- : Illumination with fixed condenser.
|
-
 |

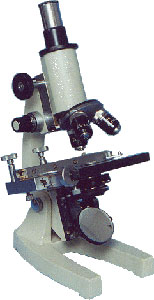

PATHOLOGICAL MICROSCOPE(Monocular) |
| Code:PA- |
Coarse motion with rack & pinion and fine motion lever type with graduated drums.
Monocular body inclinable up to 90°, mechanical tube length 160mm.
Triple/Quadruple revolving nose piece with accurate click stops.
Plain stage fixed with detachable mechanical stage having convenient adjustment for slide movement.
Safety stopper to prevent slides & objectives.
Sub stage abbe condenser focussable with rack and pinion.
Concave & plain mirror in fork.
Pressure die cast parts.
Hyg. Eye Pieces : 5x, 10x
Ach. Objectives : 10x, 45x & 100x (S.L.)
|
-
 |

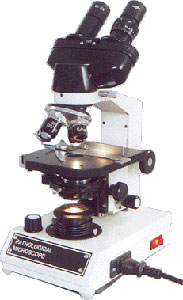

PATHOLOGICAL MICROSCOPE(Binocular) |
| Code:PA- |
Specifications:
* Rack & Pinion system for coarse motion.
* Sensitive focusing system free from back lash.
* Built in base illumination with halogen lamp 6V 20W continues variable control.
* Latest co-axial mechanical stage for an extra large viewing area.
* Replaceable mirror for natural light.
* Substage abbe condenser on rack & pinion.
* Superb in finish & workmanship.
* Eye Piece : WF-10x (Paired)
* Achromatic Objectives : 5x, 10x, 45x or 40x (SL) & 100x(SL) (Oil Imm.)
OPTIONAL ACCESSORIES:
* Microphotography Attachment
* Dark Field Attachment
* Phase Contrast Equipment
* Video Projection & Image Analysis System
* Dual Viewing Attachment
* Hyg. EYe Pieces 5x or 15x
|
-
 |

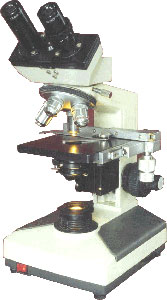

BINOCULAR MICROSCOPE |
| Code:PA- |
CXL ECONOMY SERIES Designed together to spell reliability, accuracy and ease of operation. With its most modern look, uncompromising performance and yet at a very reasonable price extends the capabilities of viewing from routine laboratory work to critical research techniques such as phase contrast, dark field, micro photography, video projection and image analysis systems.
Specifications
* Mechanical tube length 160mm
* 45° Inclined Binocular Head rotatble to 360°.
* Co-axial built in mechanical stage 125 x 150mm with fine vernier graduation, designed with convenient coaxial adjustment for smooth slide manipulation through 50 x 75mm.
* Dust proof quadruple/qiuntruple ball bearing revolving nose piece with positive click stops.
* The Co-axial focussing system incorporates a very precise and wear resistant linear bearing mechanism that eliminates vibration
and backlash. Fine motion graduated and has a built in tension adjustment ring for focusing knob.
* Substage Abbe type N.A. 1.25 condenser focusable with rack & pinion, continously variable iris diaphragm with built in swing out filter holder.
* Stripple Grey, chemical resistant, back on finish.
* Heavy rectangular sturdy base, with built-in illumination 6V-20W Halogen lamp.
* Exclusive preset focus lock prevent damage to valuable slides and objectives.
* With dust cover packed in styrofoam packing.
|
-
.jpg) |

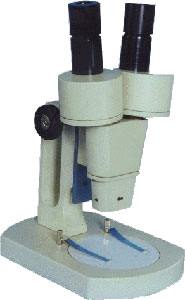

STEREOSCOPIC DISSECTING MICROSCOPE (Fixed) |
| Code:PA- |
Binocular Head with specially coated prisms (not mirrors) provide full 3 dimensional erect image with stereoscopic effect.
Interpuillary distance adjustable between 55 and 75mm. large field and long working distance. In case with lock and key.
Objective : 2x
W.F. Eye Pieces : 10x or 15x (Paired)
|
-
 |

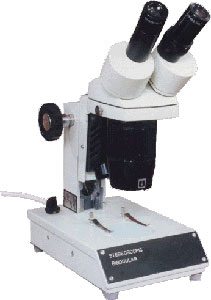

STEREOSCOPIC BINOCULAR MICROSCOPE |
| Code:PA- |
Specifications:
Inclined stereo binocular head rotatable thru 360° with locking screw fitted with specially coated prisms (not mirrors) provide full 3 dimensional erect image. Interpupillary distance adjustable between 55 and 75mm. Dioptric correction system provided on the left eye tube.
Vertical movement controlled by coarse focussing knob.
Highly corrected achromatic objectives 2x & 4x on quick changing turret keep specimen in focus even on changing magnification.
Eye pieces : 10x or 15x eye pieces (W.F.) with eye guards are available
Magnification range: 20x to 60x
Built in illumination for incident and transmitted light.
Special Acc. such as mechanical stage, filar micrometer are also available at extra cost.
|
-
 |

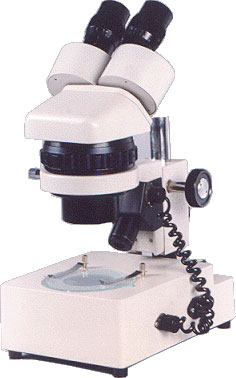

ZOOM STEREOSCOPIC BINOCULAR MICROSCOPE |
| Code:PA- |
Specifications:
* Zoom ration 1x to 5x (or 0.6x to 4x)
< Eye pieces paired SWF 10x
* Base with dual light 6V, 20W Halogen bulb.
* SWF 15x or SWF 20x Eye pieces paired.
* 2x or 0.5x Auxiliary objectives.
TRINOCULAR VERSION ALSO AVAILABLE
|
